On-Board Weighing
Intelligent Load Sensing
GX-6 load sensing unit bonds onto the axle and turns its microscopic, load-induced deformation into accurate, real-time axle and payload weight — with no drilling, no welding and no change to the axle structure.
A single GX-6, one complete weighing node.
GX-6 replaces the traditional separate strain sensor plus signal processor with one ultra-compact intelligent unit — sensor, signal conditioning, temperature compensation, edge processing and CAN communication integrated in a 25 × 25 × 14 mm package.
Precision by design
A low-noise, zero-drift, continuously variable-gain analog front end paired with a high-performance ADC reliably captures the minute strain signals that carry load information.
Integrated temperature compensation
Two integrated temperature sensors continuously monitor both the sensing unit temperature and the PCB temperature, holding zero drift to ≤ ±0.01 % F.S./°C.
On-board intelligent filtering
Edge processing applies moving-average, FIR and Kalman filtering to balance response speed and measurement stability.
Software-configurable calibration
Zero and gain are set in software — no mechanical adjustment. Parameters live in Flash; firmware updates over the bus.
Built for harsh duty
Fully potted IP67 module, −40 to +85 °C, tested against vibration, shock, damp heat and salt spray for long-term on-vehicle stability.
Distributed CAN network
CAN 2.0B at 500 kbps links up to 32 units on one bus — cover every axle, from 2-axle trucks to multi-axle trailers.
From axle to insight, in real time
Two GX-6 units are bonded near the wheels of each axle — the load-bearing points. Every unit continuously measures the local axle strain, computes the load carried at that point, and streams it over the vehicle CAN bus. The system sums the axles to give you live payload, per-axle and even per-wheel load data.
- One unit per wheel point — no drilling, welding or structural modification
- Distributed measurement → edge processing → centralized display
- Real-time axle and payload data without weighbridge stops
- Open integration with fleet management and telematics via standard interfaces & API
One platform, three building blocks
A complete on-board weighing deployment: sensing on the axle, display in the cab, data where you need it.

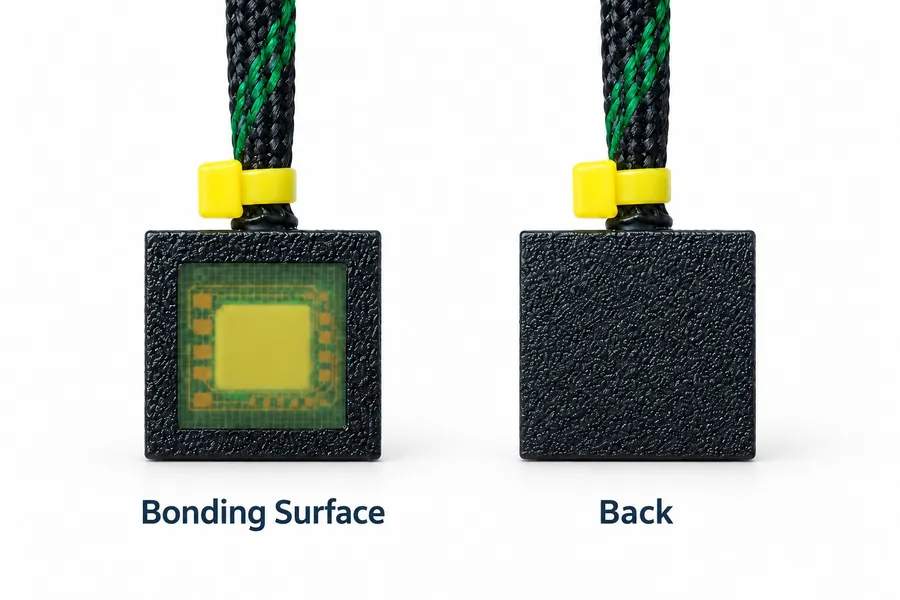

GX-6 Intelligent Load Sensing Unit
The ISU™ unit — strain sensor + signal processor merged into one 25 × 25 × 14 mm bonded module.
- Strain sensing, amplification, filtering & CAN in one piece
- Supports the J1939 protocol
- Two units per axle, one near each wheel
- IP67, potted, carbon-fiber reinforced housing
- Software calibration, no mechanical adjustment

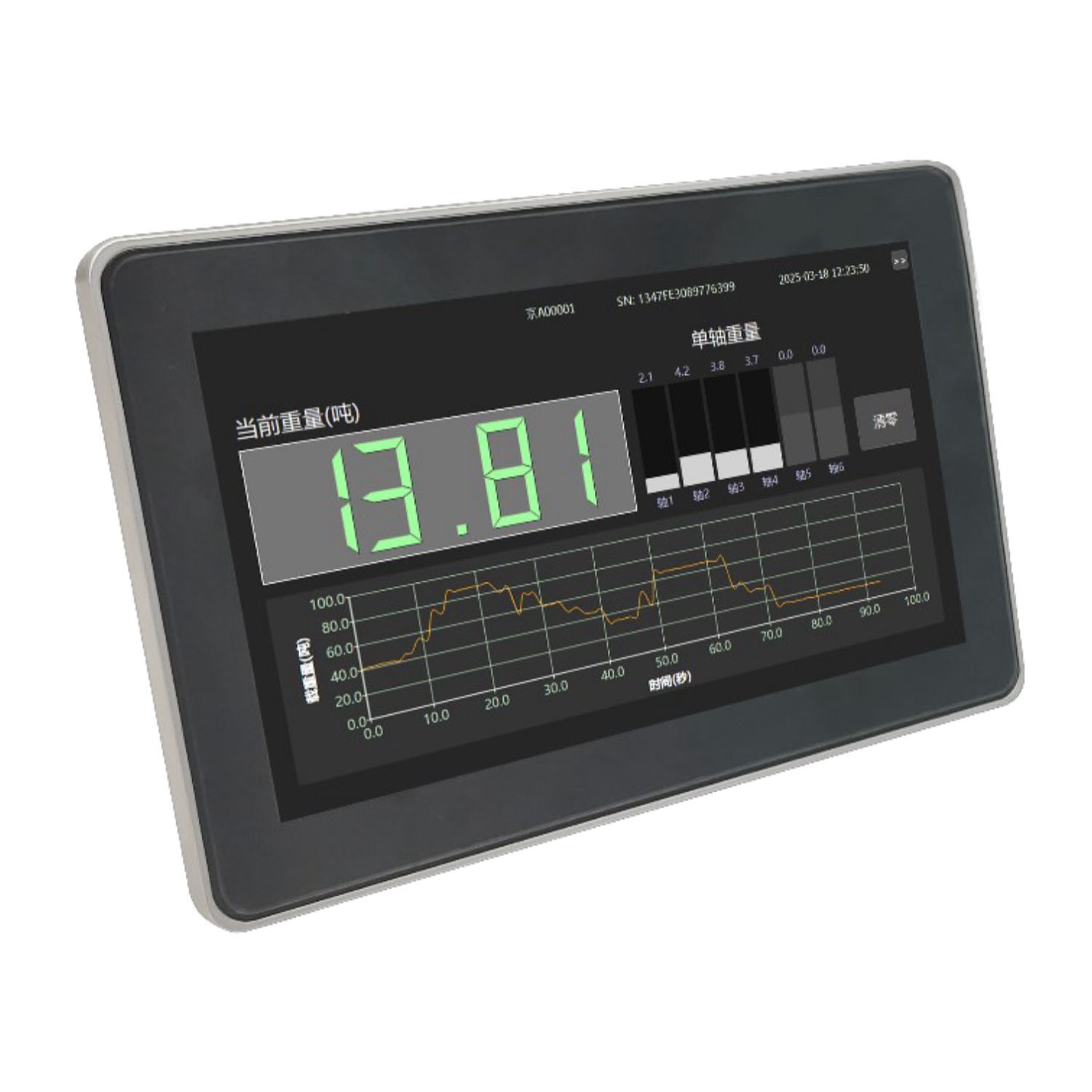

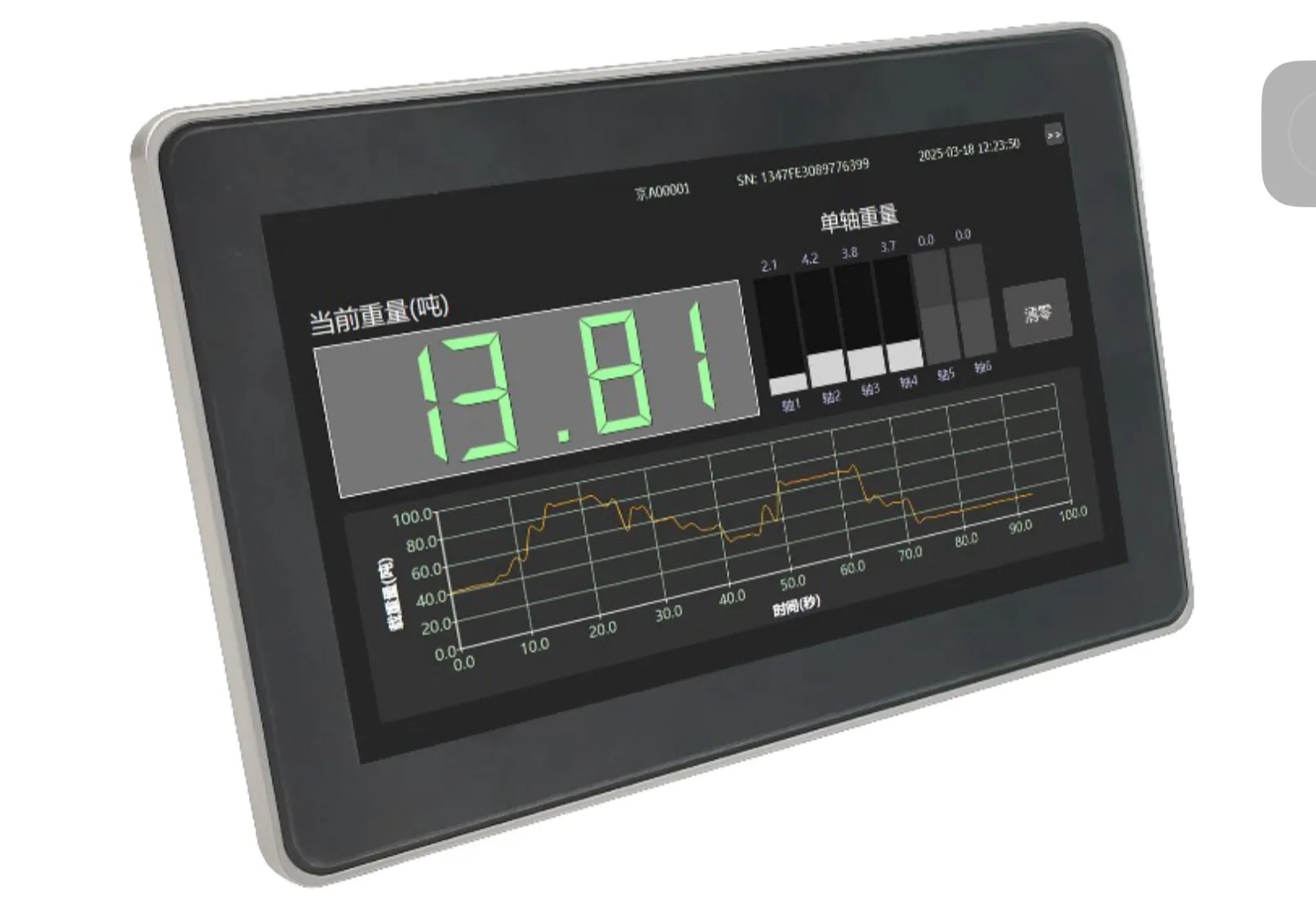

NEW-T3000 Terminal
Industrial in-cab display for live weight readouts, per-axle views and guided calibration.
- Real-time axle, wheel & total load display
- On-screen zero / load calibration workflow
- Rugged design for the cab environment
- CAN gateway to fleet and cloud services
WalkCloud API
Optional cloud dashboard and standard APIs to connect load data to your fleet or telematics stack.
- Payload dashboards & history
- Standard API integration to fleet / telematics systems
- Overload & compliance reporting
- Multi-vehicle fleet visibility
Ready to put accurate payload data on every axle?
Tell us about your trucks and duty cycle — we will size the configuration, the installation process and the expected ROI.
