GX-6 Intelligent Load Sensing Unit

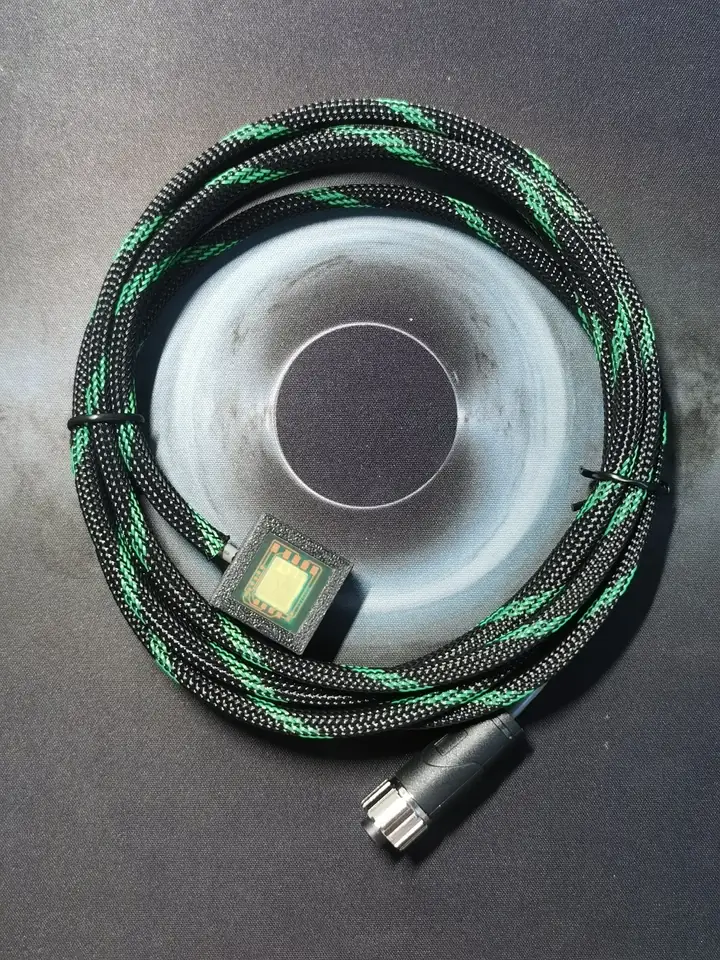

The ISU™ building block: GX-6 is itself a complete weighing node — strain sensing, signal conditioning, temperature compensation, edge processing and CAN communication integrated in a 25 × 25 × 14 mm unit.
Distributed measurement. Edge processing. Centralized display.

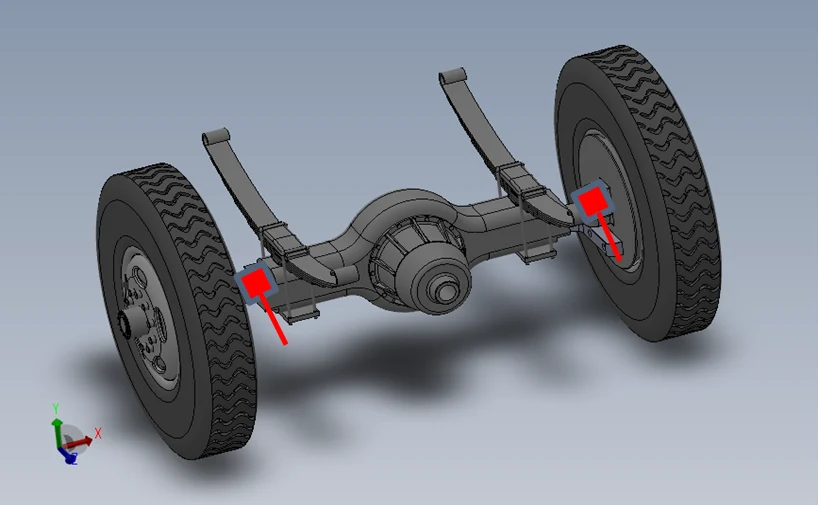

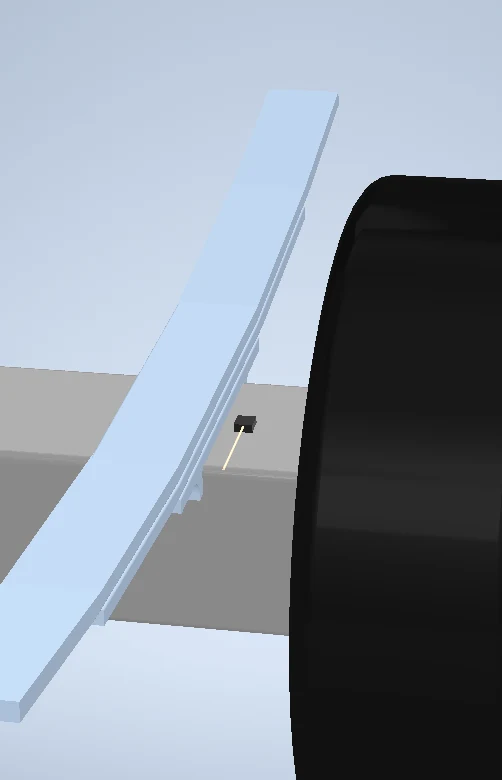

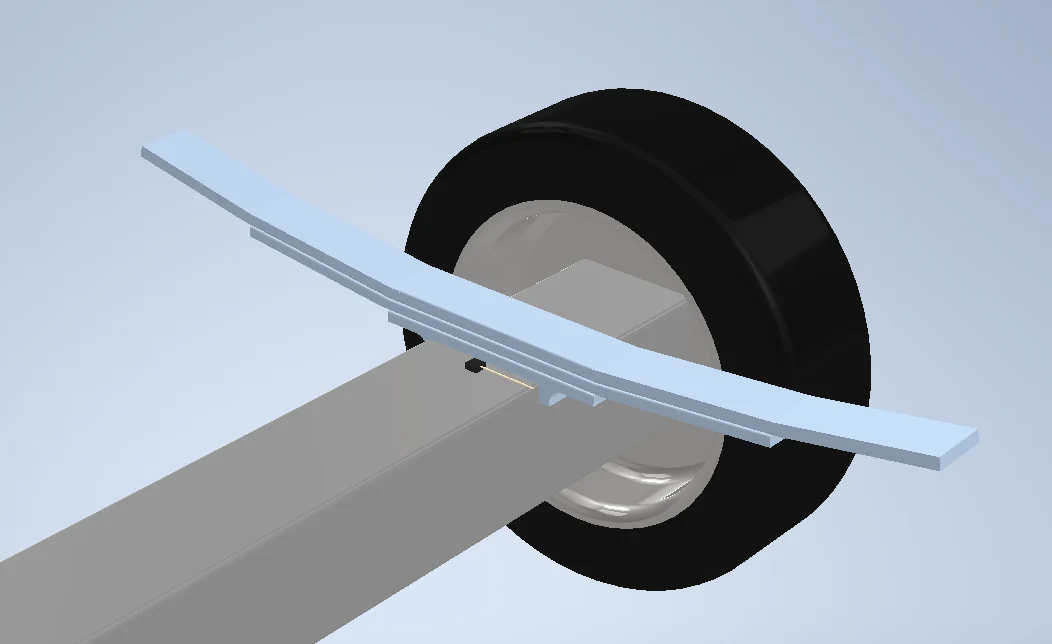

Two GX-6 units are bonded onto the load-bearing area of each axle — typically one near each wheel, between the leaf spring and the wheel. All units talk over one CAN 2.0B bus to the NEW-T3000 in-cab terminal, which displays axle and total payload and can push data to the fleet platform via API.
- 2 units per axle (one per wheel side) — typical 3-axle truck = 6 units
- CAN 2.0B extended frames, 500 kbps, up to 32 units and 50 m bus
- No drilling, welding or structural modification of the vehicle
- Works with square-section axles; vehicle power isolated via matched supply module
Technical specifications
| Parameter | Value |
|---|---|
| Measurement range | 2000 με typ. · 2200 με max. |
| Resolution | 0.03 % F.S. |
| Sensor overall accuracy | ±0.3 % F.S. typ. · ±0.5 % F.S. max. |
| Hysteresis | ≤ 0.1 % F.S. |
| Temperature drift | ≤ 0.01 % F.S./°C |
| Non-linearity | < ±1 % F.S. |
| Repeatability | 0.1 % F.S. |
| ADC resolution | 12 bit |
| Sampling interval | 100–6000 ms, software configurable (internal acquisition up to 20 Hz) |
| Installation accuracy | ≤ ±1.5 % F.S. with professional installation & calibration |
All figures are % F.S. of the measurement range. Field comparison against weighbridges on mining and freight trucks has shown 1–2 % agreement. Sensor-level figures from the GX-6 technical manual (V2.0).
Built for the road — and the off-road
| Parameter | Value |
|---|---|
| Dimensions | 25 × 25 × 14 mm (W × L × H) |
| Weight | 5 g (unit only, excluding cable) |
| Housing | Carbon-fiber reinforced engineering plastic, fully potted, black |
| Protection | IP67 — dust-tight; protected against 1 m immersion for 30 min |
| Mounting | Dedicated two-component structural adhesive; surface flatness ≤ 0.2 mm recommended |

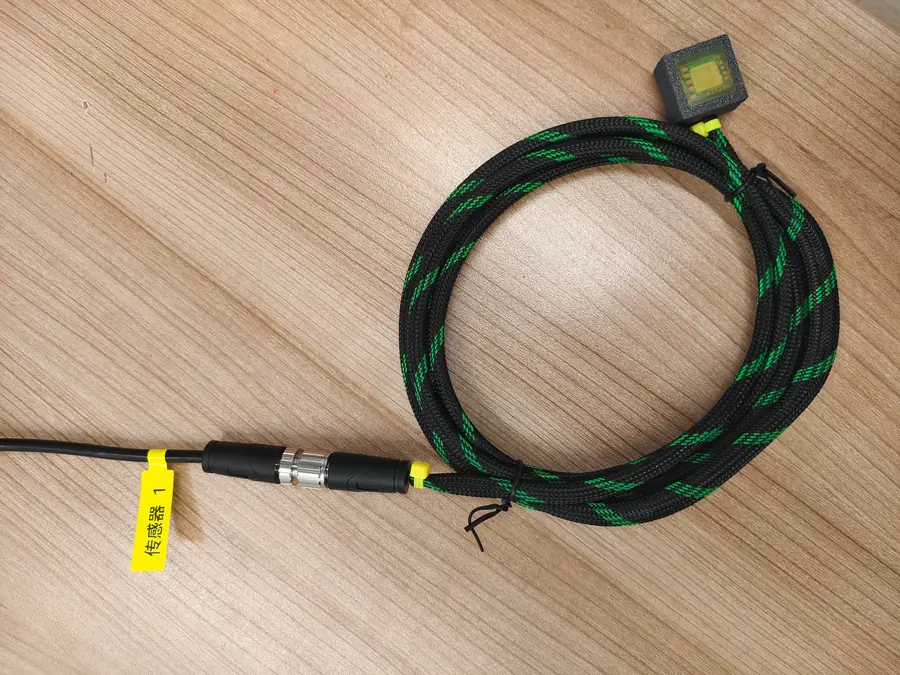

| Cable | 4-core shielded, 2 m, Ø4 mm with nylon sleeve, side exit |
| Connector | M12 waterproof connector (VCC, GND, CAN_H, CAN_L, NC) |
| Supply voltage | 4.5–7.2 V DC (typ. 5.0 V) via matched isolated supply module |
| Operating current | 80 mA typ. · 150 mA max. @ 5 V |
| Protections | Reverse-polarity, ESD (±8 kV IEC 61000-4-2) & voltage monitoring |
| Communication | CAN 2.0B extended frames · 500 kbps · 120 Ω termination per end |
| Network scale | Up to 32 GX-6 units per bus · bus length ≤ 50 m |
| Operating temperature | −40 to +85 °C |
| Storage temperature | −40 to +125 °C |
| Environmental testing | Vibration 5 g rms (10–2000 Hz) · shock 30 g/11 ms · damp heat · salt spray |
| Compatible axles | Square-section axles (round/other sections: please contact us) |
GX-6 provides reference weight data for operational management and is not a substitute for certified legal-for-trade weighing equipment where metrological certification is required.
NEW-T3000 — the industrial in-cab display
The NEW-T3000 is the human-machine interface of the system. Mounted in the cab, it shows live per-axle and total load, gives the driver clear feedback during loading, and hosts the guided zero / load calibration workflow used at install and re-calibration.
- Live total, axle and wheel load display
- Guided on-screen calibration and configuration
- Rugged industrial design for cab conditions
- Gateway between the GX-6 CAN network and fleet/cloud services
Not sure if GX-6 fits your fleet?
Send us your truck type, axle configuration and duty cycle — we will recommend the right configuration and installation partner.
